Test device - ReConn01

The Safe-Ground ReConn01 test device is a device designed to check Safe-Ground earthing and bonding systems for proper operation. The Safe-Ground earthing systems carry out resistive and capacitive measurements to guarantee a good earthing of the desired object.

Advantages:

The ReConn01 is a passive device that does not generate voltage or store energy without connecting a earthing clamp. It is therefore suitable for use in an ATEX environment.

  • A measuring point for connecting earth clamps
  • Test cable with crocodile clip for good earth connection
  • Resistance measurement selection switch
  • Capacitance measurement selection switch
  • Suitable for use in ATEX environment

Contact us

 Data sheet Safe-Ground_Explosionprevention_Testdevice_SG-T-ReConn01_EN

  • The ReConn01 contact point consists of two conductive parts separated by an insulator.

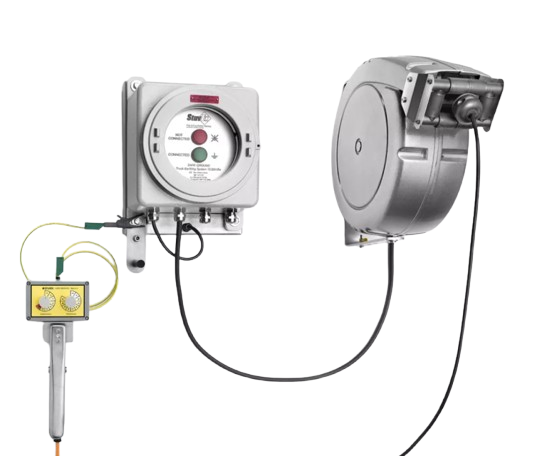

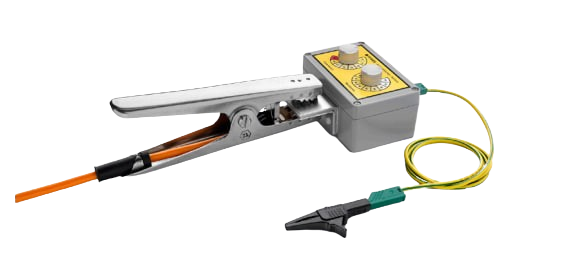

  • By connecting a Safe-Ground series grounding rod, both resistive and capacitive system operation can be tested (e.g., TES01 for trucks).

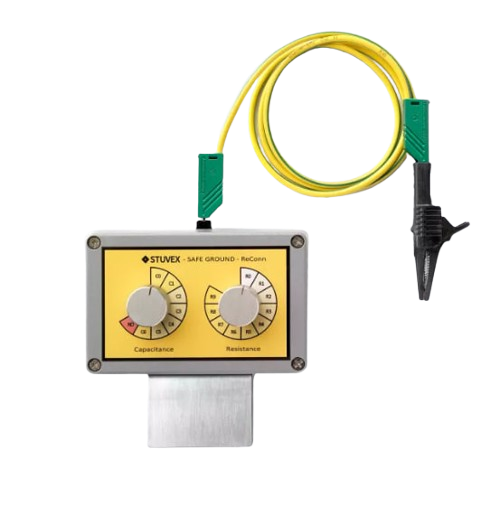

Equipped with two selector knobs:

  • for capacitive control
  • for resistive measurement
  • By turning the knobs from minimum to maximum positions, the user checks the threshold values of Safe-Ground control units.
  • ReConn01 is a passive device that does not generate voltage or store energy without a connected rod.
  • This makes it safe for use in ATEX zones.

    ⚠️ Before use, always read the instructions for ReConn01 and the respective Safe-Ground system to correctly interpret the results.
