Earthing control - multipoint
MGS01

The MGS01-V1 grounding system allows simultaneous connection of one to ten objects.
During the loading or unloading of flammable liquids or powders, electrostatic charges can build up. If the accumulated energy is high, a spark may occur, potentially causing fire or explosion.
Connecting all conductive parts to the ground completely eliminates this risk.

Advantages:

  • Safe electrostatic discharge of connected objects
  • Low resistance ( < 10 Ω)
  • Signalled (green) for local status indication
  • Signal LEDs (red and green) for local release indication
  • Potential-free contact release charging or discharging process
  • ATEX and IECEx certified
  • Complies with IEC/TS60079-32-1 and NFPA77

Contact us

 Data sheet Safe-Ground_Explosion prevention_earthingcontrol multipoint SG-E-MGS01-V1_EX_EN

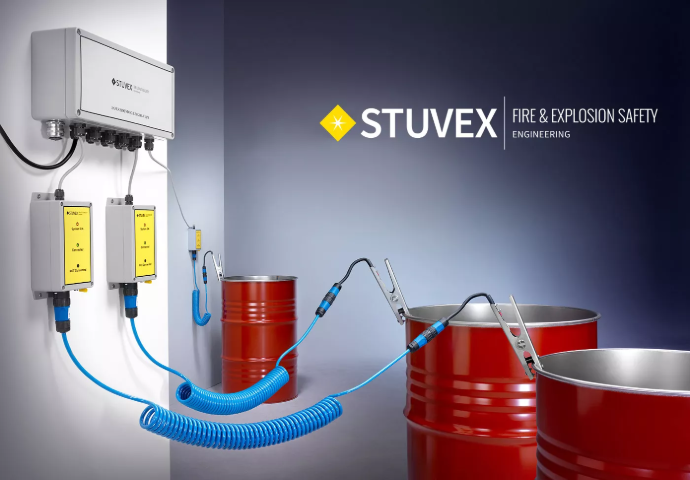

The multipoint earthing control system MGS01 consists of a power box, one up to 10 resistance control boxes, one up to 10 loose cable(s) or coiled cable(s), one up to 10 earthing clamp(s), supplied with or without connector set.

The MGS01 system consists of:

  • MGS01-V1-PB — Power Box
  • MGS01-V1-RCB — Resistance Control Box (one or more)

The system ensures safe grounding of conductive objects using a grounding clamp, guaranteeing safe loading and unloading operations.
MGS01 is part of a preventive safety system in industrial installations.
