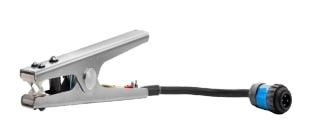

Earthing clamp - CMS1

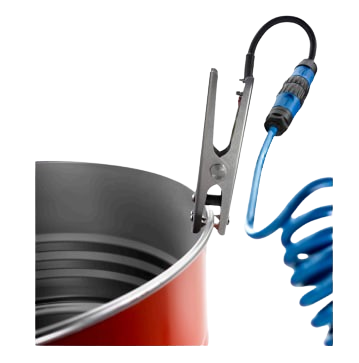

The Safe-Ground CMS1 stainless steel earthing clamp is designed to provide an effective, low-resistance connection between movable objects and earth to safely dissipate any static electricity.

Advantages:

Its robust design, integrated strain relief and high-quality material make the clamp ideal for use in harsh working conditions and in (petro)chemical, off-shore and other process industries.

  • Shaped, robust and ergonomic design
  • Sharp, hardened teeth with optimal “biting power”
  • Equipped with integrated strain relief
  • Suitable for use in all weather conditions
  • Suitable for use in chemical or saline environments
  • Suitable for use in ATEX environment
  • According to IEC/TS60079-32-1

Contact us

 Data sheet Safe-Ground_Explosion prevention_Earthing clamp_SG-B-CMS1_EN

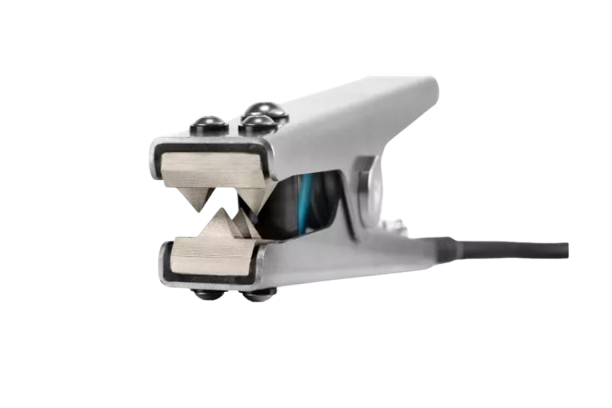

  • The CMS1 rod is equipped with a spring mechanism and hardened sharp teeth.
  • When in contact with a metal object, the teeth easily penetrate layers of paint, rust, or dirt.
  • This ensures an electrical connection with resistance below 10 Ω, in compliance with IEC/TS60079-32-1:2013/A1:2017.

Robust construction, an integrated strain relief system, and the use of high-quality materials make the CMS1 ideal for operation in harsh industrial environments, such as:

  • (Petro)chemical industry
  • Offshore facilities
  • Industrial manufacturing sites
