Cable reel - CR1/65

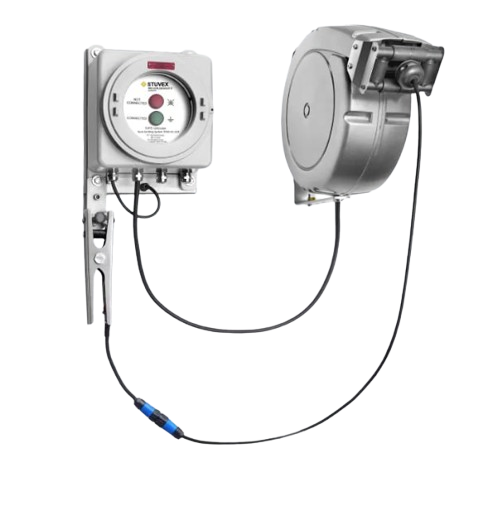

Safe-Ground CR1/65 cable reel for use with Safe-Ground earthing clamps has been specially developed to provide an effective, low-resistance connection between movable objects and the Safe-Ground earth control units, to safely divert any static electricity.

Advantages:

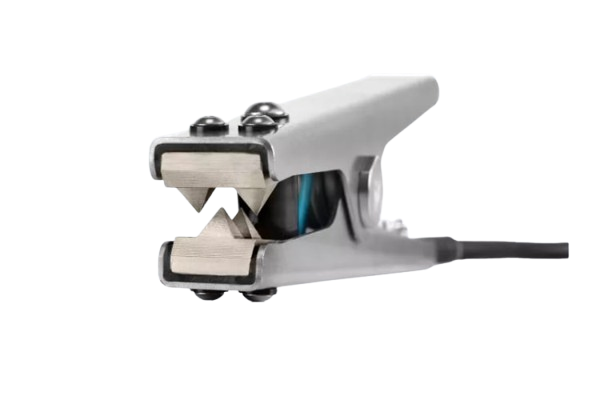

The cable reel is supplied as part of a StuvEx earthing system, equipped with an ATEX approved earthing clamp and connector.

  • High mechanical protection of the cable
  • Simple and quick installation
  • Minimum resistance (< 10 Ohm)
  • Closed housing with earth connection
  • Integrated retractor
  • Cable routing with self-lubricating rollers
  • Automatic blocking mechanism
  • Swiveling bracket in stainless steel

Contact us

 Data sheet Safe-Ground_Explosion prevention_Cable reel_SG-E-CR1-65_EN

  • The CR1/65 cable reel is equipped with copper contact rings and special brushes to minimize resistance.
  • Provides a low-resistance (<10 Ω) and continuous connection in compliance with IEC/TS 60079-32-1.
  • Convenient cable winding and unwinding thanks to self-lubricating guide rollers.
  • The locking mechanism secures the cable every 50 cm.
  • Automatic retraction mechanism allows the cable to rewind itself after use.
  • The swivel bracket provides a wide range of applications.
  • The reel is suitable for industrial use and ATEX zones.
