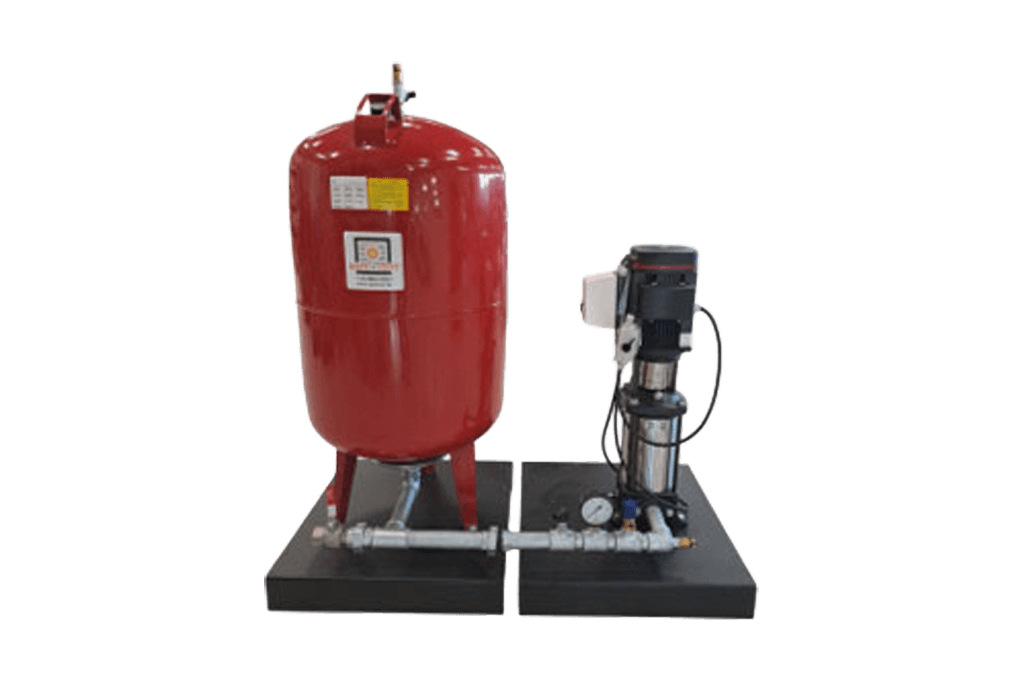

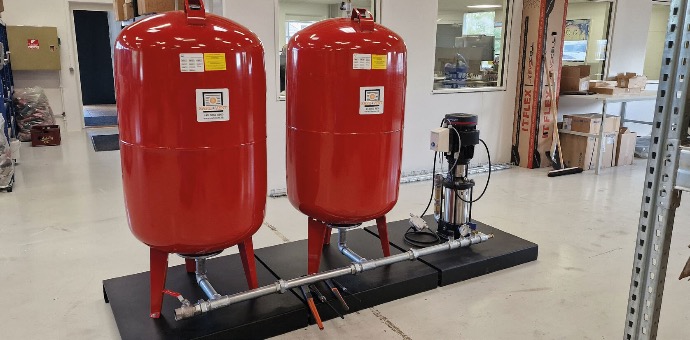

Booster System

The Booster System is designed to supply the spark detection and extinguishing system with water at the required flow rate and pressure for reliable operation of extinguishing nozzles.
It ensures a stable and controlled water supply, allowing effective formation of a water barrier for rapid suppression of sparks and hot particles.

The system integrates all key hydraulic and control components into a single unit, supporting continuous operation of fire and explosion protection systems in industrial environments.

System Functions

The Booster System operates as part of an integrated spark detection and fire protection solution, ensuring continuous water availability for extinguishing modules upon detection of ignition sources.
The Booster System is integrated with the control unit, which manages detection signals, activation of extinguishing modules, and system response logic.
This ensures reliable system operation, rapid response, and protection of industrial equipment, facilities, and personnel.

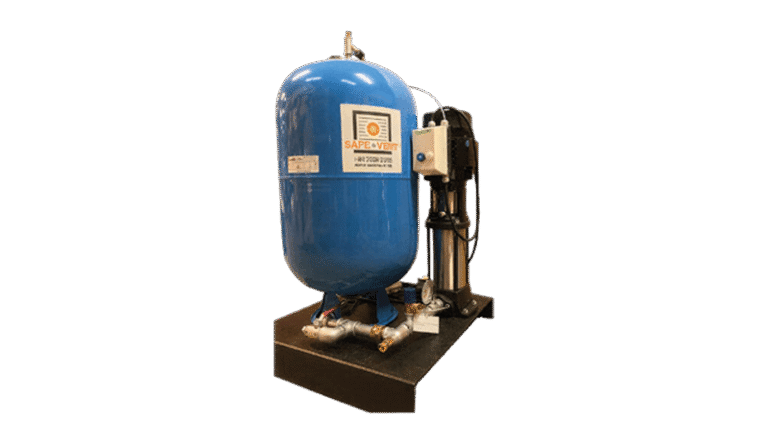

150L Booster System

supports up to 3 sprinkler nozzles

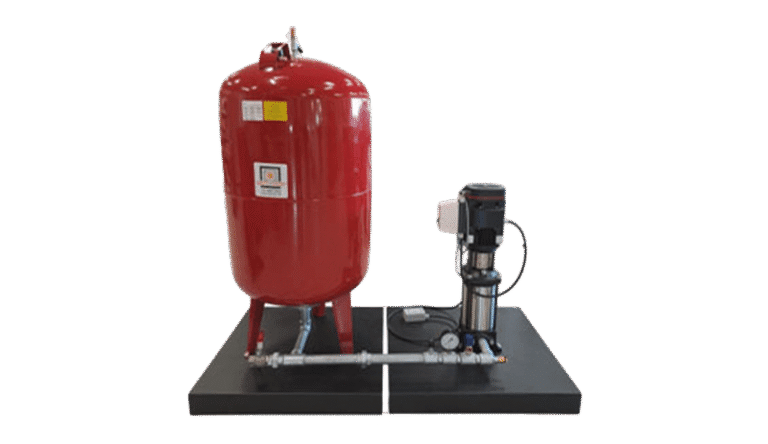

300L Booster System

supports up to 5 sprinkler nozzles

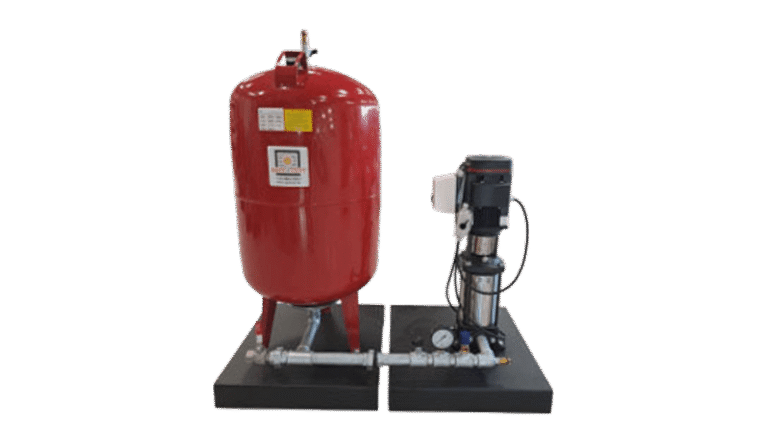

500L Booster System

supports up to 7 sprinkler nozzles

The Booster System includes:

Pump unit
Power control and relay system
Water tank (150 L / 300 L / 500 L)
Pressure control unit with flush valve
Pressure switch
Manometer (10 bar)
Overpressure safety valve
Ball valve
Filter / strainer
Service switch

Stable water supply at required pressure and flow
Ensures reliable operation of extinguishing systems
Integrated design with all hydraulic components
Scalable configurations for different system sizes
Continuous readiness for emergency activation
Designed for industrial operating conditions

Spark detection and extinguishing systems
Pneumatic conveying systems
Ventilation and aspiration ducts
Conveyor and material transport systems
Dust collectors and filtration units
Industrial processes with combustible dust
